UV LED Curing Systems: A Modern Alternative to Mercury-Based Technologies   Recent advancements in UV LED curing technology have revolutionized industrial processes across printing, additive manufacturing, surface treatments, and bonding applications. This analysis explores the key benefits of LED-based systems compared to conventional mercury-vapor lamps.   Operational Longevity A defining characteristic of UV LED systems lies in their exceptional service life. These systems maintain optimal performance for approximately 20,000 operational hours, contrasting sharply with mercury lamps' typical 500-2,000 hour lifespan. The frequent replacement requirements of traditional systems contribute to significant production interruptions and elevated maintenance expenses.   Energy Efficiency Profile Mercury-based illumination suffers from substantial energy waste, with only 20% of output falling within the UV spectrum. The remaining energy manifests as infrared radiation, creating problematic heat generation that risks damaging temperature-sensitive materials and potentially compromising product integrity. Furthermore, the gradual degradation of mercury bulbs leads to inconsistent curing performance over time. UV LED solutions address these limitations through targeted UV emission, eliminating thermal byproducts while maintaining stable output levels throughout their operational lifespan.   Precision Control Capabilities ProPhotonix's innovative UV LED architecture incorporates segmented control technology, enabling independent monitoring and adjustment of individual LED arrays. This advanced configuration ensures both precise intensity management and uniform radiation distribution across the curing surface. The system's programmable interface allows customization to meet specific application requirements, maintaining consistent performance parameters throughout extended operational periods.   Performance Summary The transition to UV LED curing technology offers substantial improvements in reliability, operational efficiency, and process control. Organizations seeking detailed technical comparisons may access our comprehensive whitepaper for in-depth performance analysis and implementation guidelines.

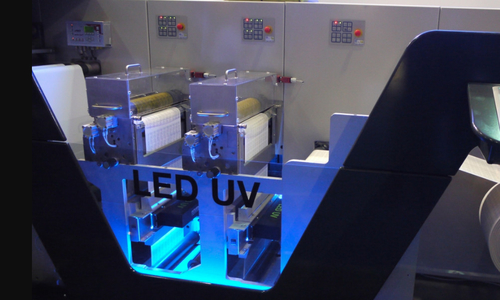

What is LED UV curing? LED UV curing uses high-intensity electronic ultraviolet (UV) light to change inks, coatings, adhesives or other photo-reactive substances through polymerization into instantly fixed-in-place solids. “Drying,” by contrast, solidifies chemistry through evaporation or by absorption. From a cooler, cleaner cure than that achieved with mercury arc bulbs common with conventional processes, to faster and more consistent output, energy savings, and a reduced environmental footprint, its advantages are numerous and measurable to many manufacturing and printing entities.   A key advantage of LED UV curing systems is the ability to bypass the heat-related hazards and energy costs of heat-set drying because they do not generate infrared heat and operate at significantly lower temperatures than traditional mercury arc UV curing lamps.   The low amount of heat that is generated with LED UV dissipates from the backside of the module, leaving the substrate side cooler. This allows for printing on a much broader range of heat-sensitive substrates than possible with mercury arc lamps, including films and plastics and other materials that don't absorb inks, without distortion or damage.   What is UV Curing? UV curing is a low-temperature, high-speed, solvent-less photochemical process that uses high-intensity electronic ultraviolet (UV) light to change inks, coatings, adhesives or other photo-reactive substances through polymerization into an instantly fixed-in-place solid. “Drying,” by contrast, solidifies chemistry through evaporation or by absorption. Ideally, with UV curing, the cured substances become securely adhered to the substrate onto which they were applied, with adequate depth of cure without being tacky, sticky or flakey.   Types of UV curing include spot curing, flood curing, hand-held curing and conveyor curing. UV curing systems use a variety of lamps as the UV light sources: mercury-based arc lamps which generate broad spectrum UV light; and light emitting diodes (LEDs) that emit only UVA energy. While UVC LEDs are an option, the power output and efficiency is much lower.
